4D Laser Level Plane 16 Lines Bag 2 Batteries Green
Beschreibung

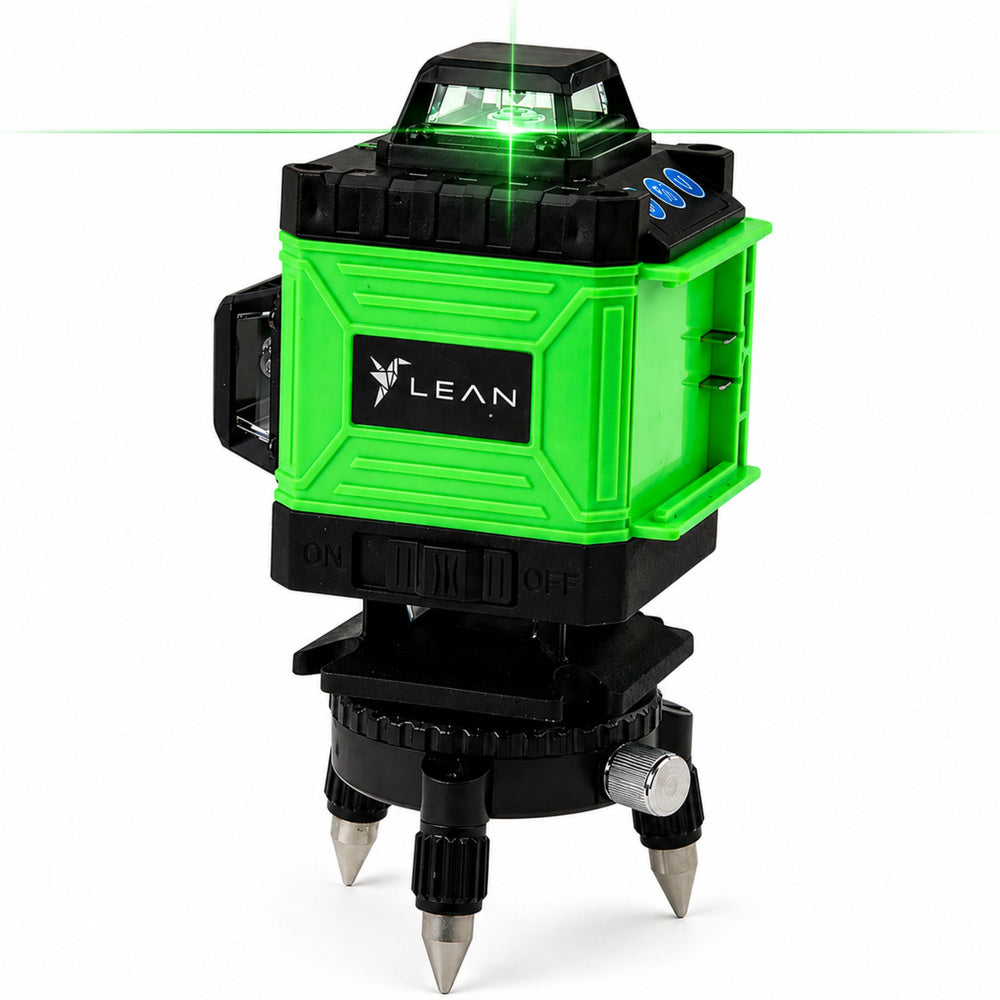

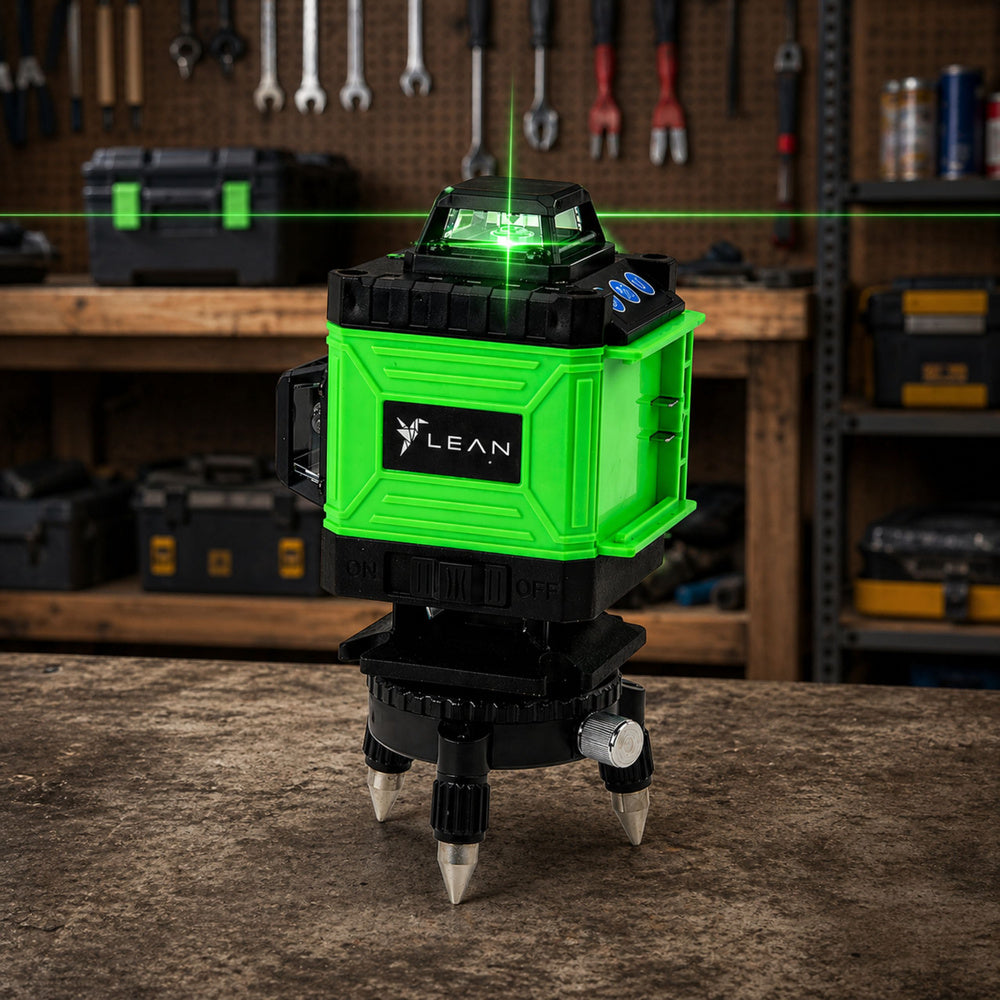

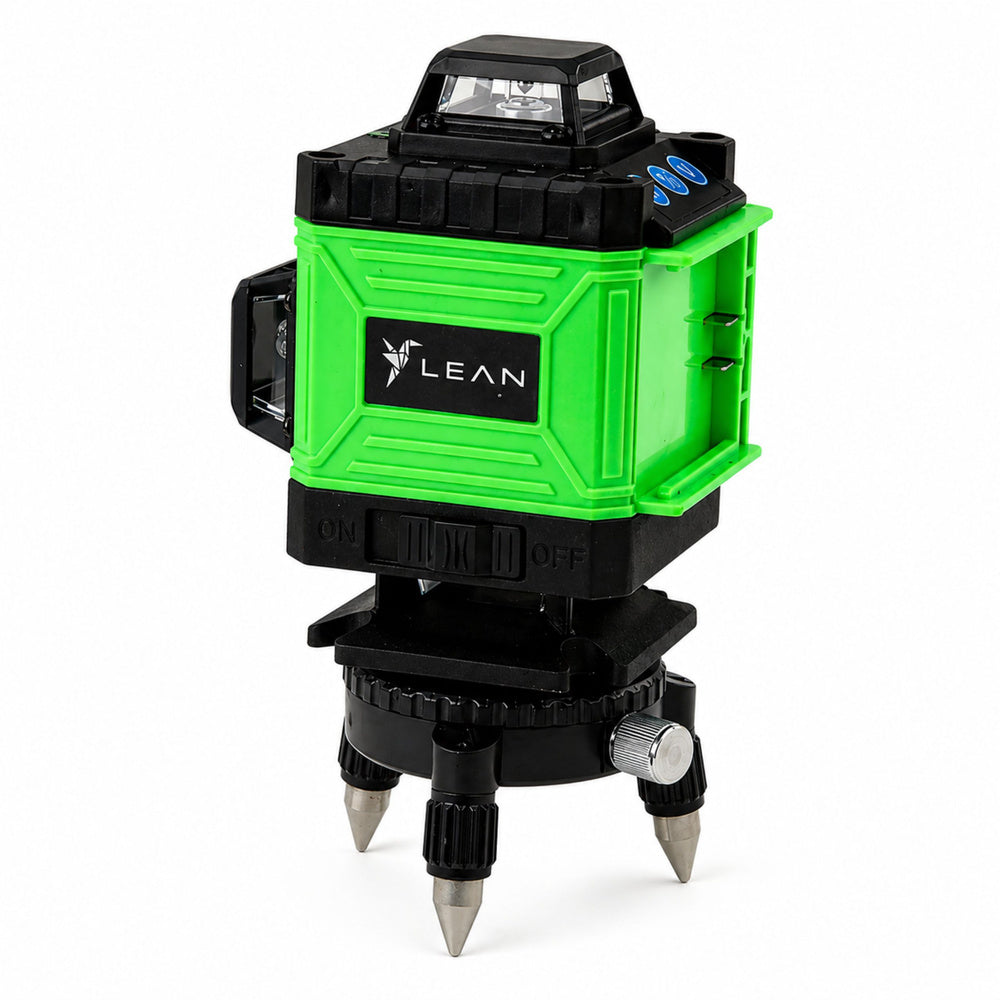

4D 16-LINE CROSS LINE LASER, 2x BATTERY, GREEN
The professional 4D 16-line laser is a high-precision tool for demanding finishing, assembly, and measurement work. Thanks to four projection windows, it generates up to 16 laser lines – providing 360° coverage on three planes. The green light beam is perfectly visible both indoors and outdoors.
The device offers the ability to adjust the number of displayed lines (4/8/12/16), features a self-leveling function up to 3°, and triggers an audible signal and light alarm if this threshold is exceeded. Operation is intuitive – via buttons, remote control, or a mobile app. Thanks to its IP54 protection class, the laser is suitable for use in difficult conditions – both indoors and outdoors.
The set includes comprehensive mounting accessories, grips, 2x rechargeable batteries, remote control, a lifting platform, and a robust carrying case with shock-absorbing foam. It is ideal for tiling, furniture assembly, height marking on stairs, ceiling construction, and wall decorations.
SPECIFICATIONS:
- Laser diode: 532 nm (green light)
- Projection type: 4D (360° x 4 = 16 lines)
- Accuracy: ±0.2 mm / 10 m
- Automatic leveling range: ±3°
- Operating temperature: -5 °C to 50 °C
- Working range: up to 40 m
- Protection class: IP54
- Power supply: rechargeable (2x batteries included)
- Operating time: up to 5 hours
- Battery capacity: 150 mAh
- Charging voltage: 220–240 V
- Level size: 12 × 10 × 13 cm
- Case size: 16.5 × 23 × 21.5 cm
- Operation: manual, via remote control, mobile (app)

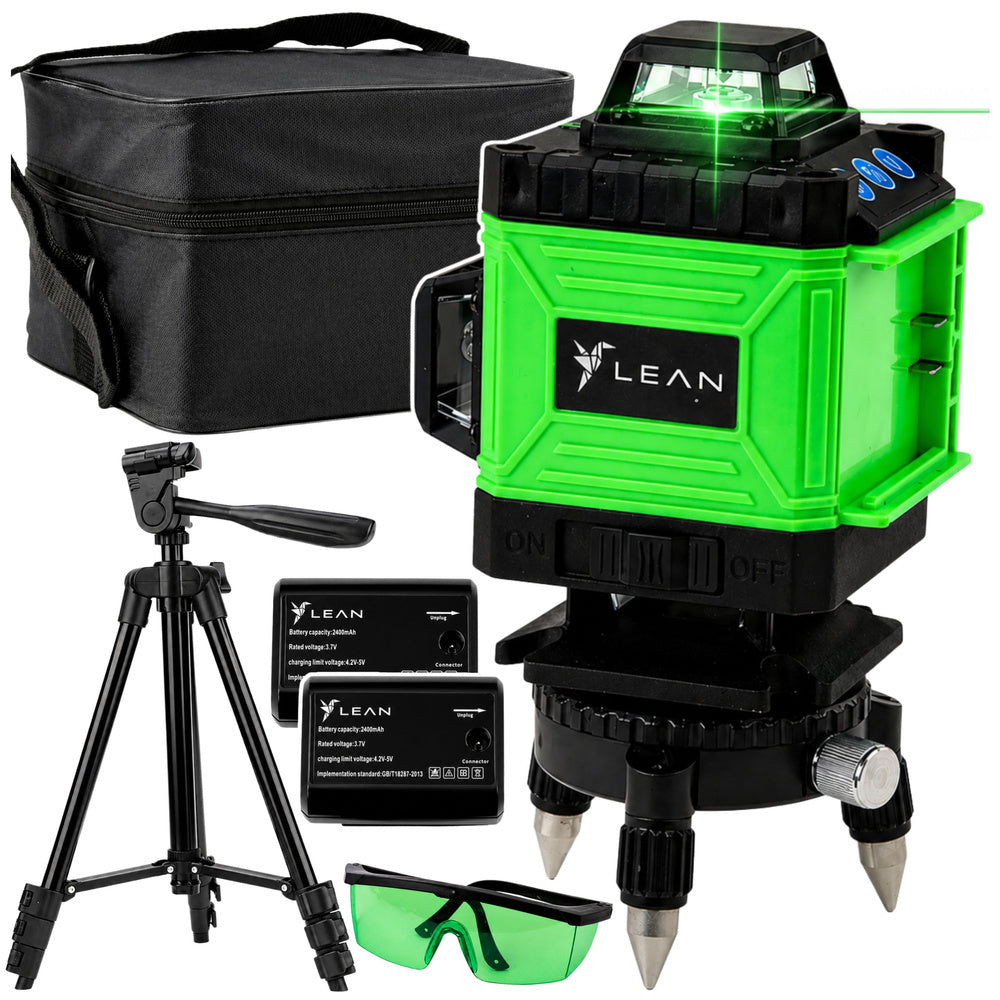

SET CONTENTS:
- 1x 4D laser level (green laser)

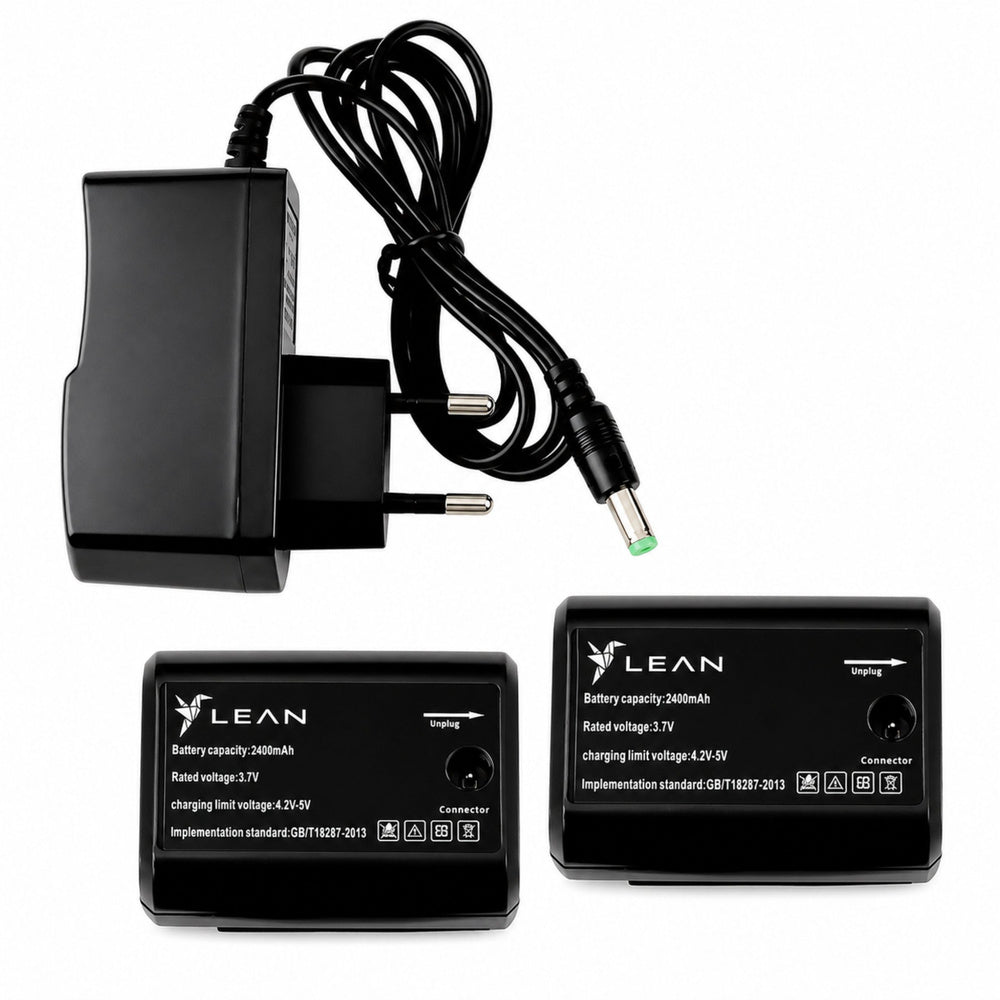

- 2x Lithium battery
- 1x Charger
- 1x Lifting platform

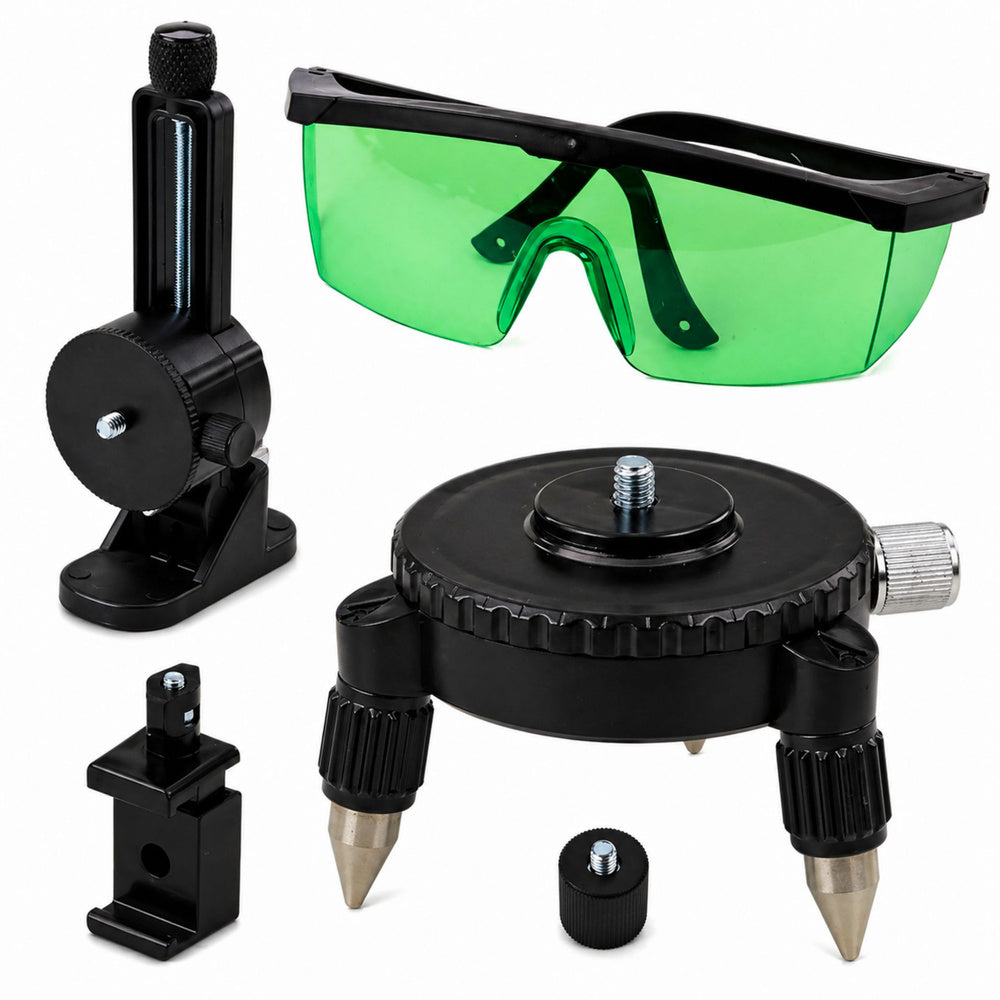

- 1x Magnetic rotating base
- 1x Wall mount/tripod adapter
- 1x Remote control
- 1x Aluminum foot
- 1x Protective glasses

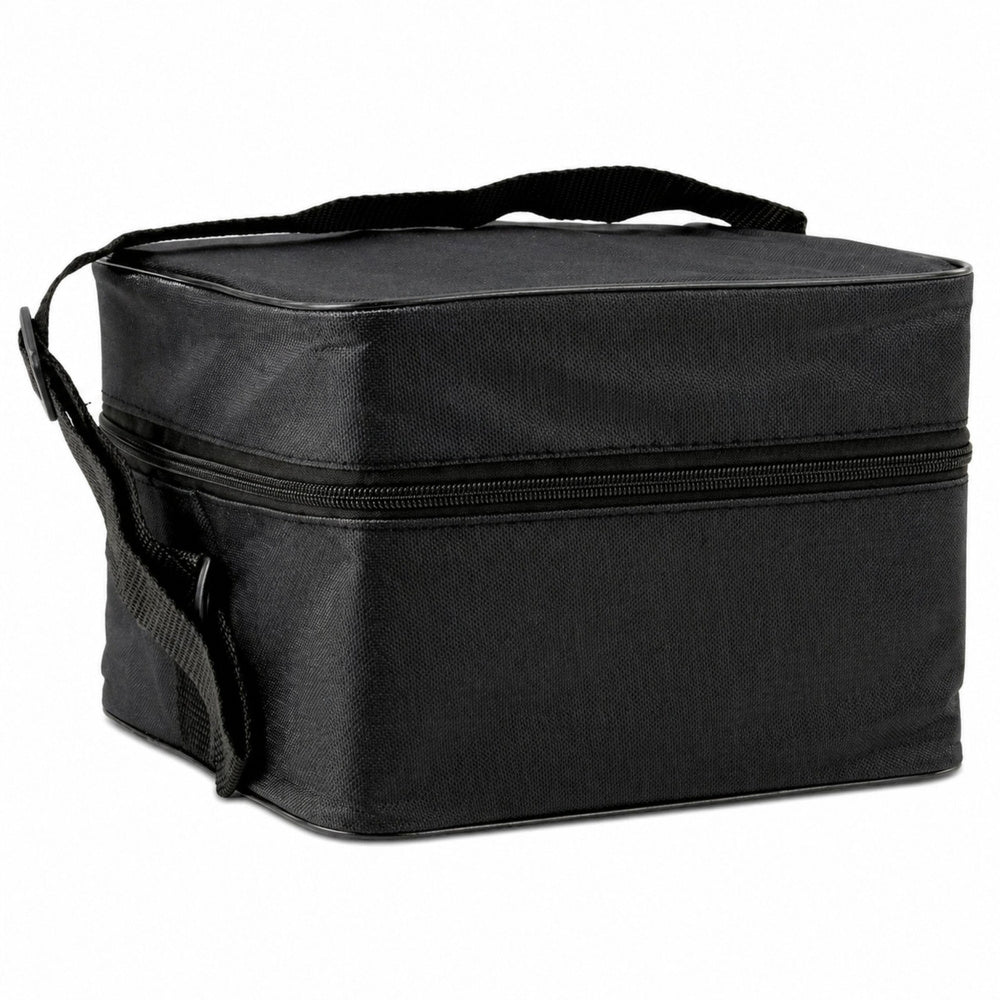

- 1x Carrying case with protective foam

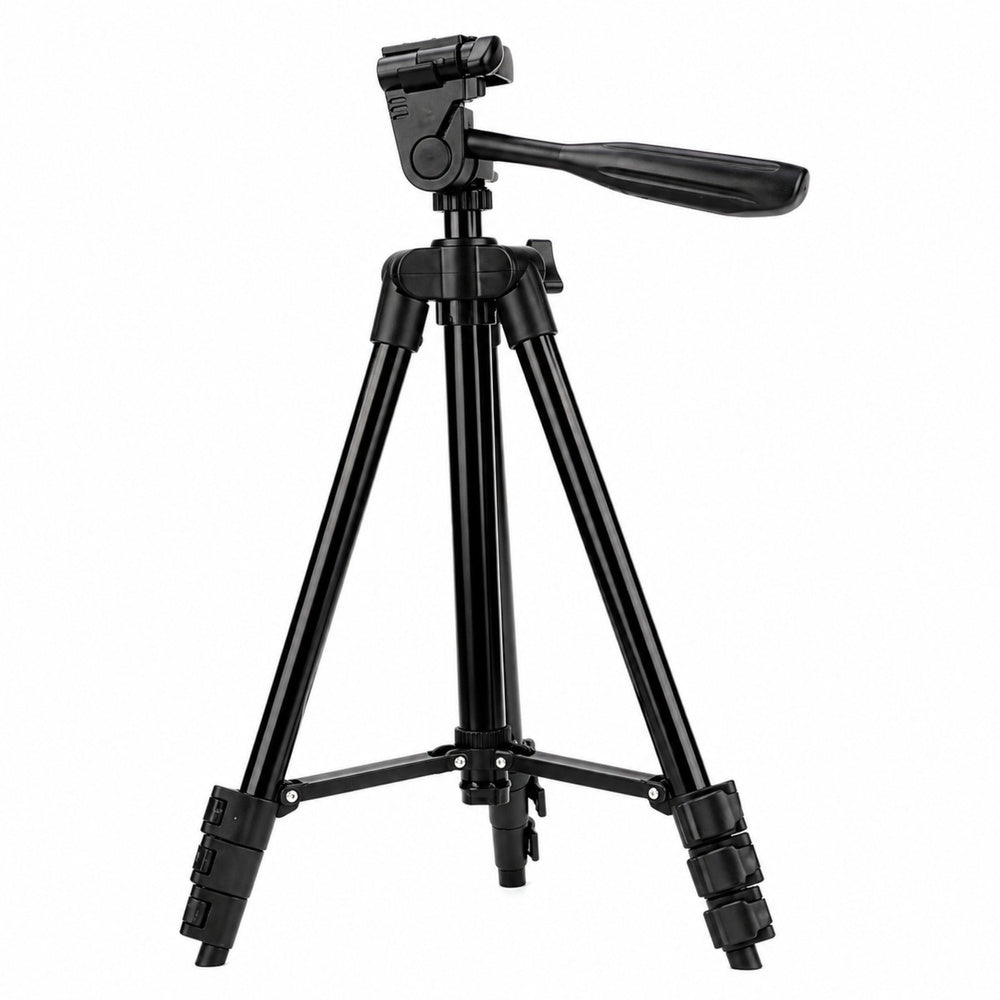

- 1x Tripod
